Factory Built HP Receiver Package
Prominent Features
| Make | Reynold |
| Design Code | ASME Section VIII Div.1 |
| Operating Temperature | +40°C upto +60°C |
| Design Pressure | 28 bar |
| Design Temperature | 85 Deg C |
| MOC Shell | SA 516 Gr.70 |
| MOC of Dished End | SA 516 Gr.70 |
| Shell Thickness | 14 mm min. |
| Dished End Thickness | 16 mm min. |
| Corrosion Allowance | 1.5 mm |
| Radiography | 10% Spot |
| Painting | HP Receiver will be sand blasted and painted with three coat painting procedure with a total DFT of about 200 microns |
Accessories
- Stop valves for liquid in and outlet.
- Stop valves for gas outlet.
- Oil drain stop and quick reacting valve.
- Safety relief valves.
- Pressure-indicator & transmitter complete with stop valve.
- Liquid level Sight Glass with Isolation valve.

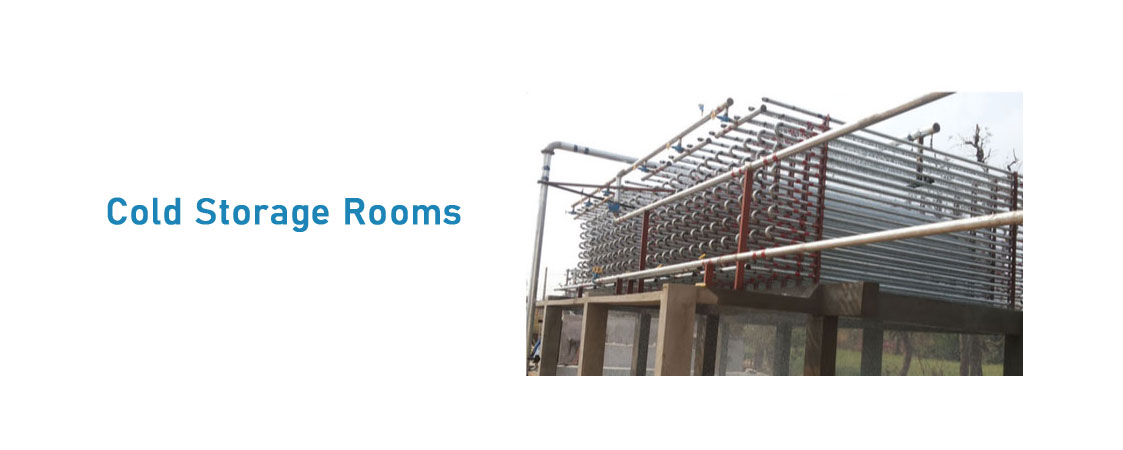

Cold Storage Rooms
Prominent Features
We are Offering Cold Storage Rooms to our clients.
USAGE/APPLICATION : INDUSTRIAL
Material : Stainless Steel
