Air-cooled Screw Chillers
Reynold Air-cooled Screw Chillers are suitable for working in extreme tropical weather conditions while maintaining energy and operational efficiencies. The equipment are designed and manufactured in compliance with superior designing and manufacturing standards.The environment friendly Industrial chillers are easy to install and are tested against all required international parameters to be at par with the best.
Prominent Features
- The latest most efficient and highly reliable screw compressors from Europe
- Environment friendly, energy efficient and operation friendly refrigerant R-134a
- Highest full and part load energy efficiencies, through single and multiple refrigeration circuits
- Factory made and tested DX and Flooded evaporators, made as per highest international standards of manufacturing
- Electronic expansion valves for increased efficiency and precise temperature control
- Fully automatic PLC based units with remote operation and data logging facilities
- Low FPI count and high condensing area together with low noise, high flow, pressure controlled axial fans, ensuring best possible energy efficiency while being operable within the harshest ambient conditions
- Stepless capacity control from 25% to 100% adapting precisely to varying process loads
Water-cooled Screw Chillers
Reynold Water-cooled Screw Chillers are designed to work within extreme tropicalized weather conditions, while maintaining the highest energy efficiency. Designing and the choice of equipment are critical to conform to superior standards. Manufacturing Industrial Chillers and testing standards at our facilities are at par with the best, internationally. Installed equipments are operation friendly and are backed by competent engineering team to realize the advantage while being in operation.
Prominent Features- The latest most efficient and highly reliable screw compressors from Europe
- Environment friendly, energy efficient and operation friendly refrigerant R-134a
- Highest full and part load energy efficiencies, through single and multiple refrigeration circuits
- Factory made and tested DX and Flooded evaporators, made as per highest international standards of manufacturing
- Electronic expansion valves for increased efficiency and precise temperature control
- Fully automatic PLC based units with remote operation and data logging facilities
- High fouling factors, increased condensing area, extra tube thickness and high-flow design, for highest energy efficiency, higher operational reliability and easier maintenance
- Step less capacity control from 25% to 100% adapting precisely to varying process loads
Industrial Screw Chillers
Reynold Industrial Screw Chillers are designed and manufactured for the cooling processes, where each process is completely different from the other. The industrial chillers are designed using qualitative materials and metallurgy and are fitted with the most efficient compressors from Europe. The materials and metallurgies are chosen according to the process fluids being used as per the specific process requirements.
Prominent Features- The latest most efficient and highly reliable semi- hermetic and open screw compressors from Europe
- Totally skid mounted units with single and multiple refrigeration circuits, with the highest full and part load energy efficiencies
- Factory made and tested DX and Flooded evaporators, made as per highest international standards of manufacturing
- Electronic expansion valves for increased efficiency and precise temperature control
- Fully automatic PLC based units with remote operation and data logging facilities
- High fouling factors, increased condensing area, extra tube thickness and high-flow design, for highest energy efficiency, higher operational reliability and easier maintenance
- Low FPI count and high condensing area together with low noise, high flow, pressure controlled axial fans, ensuring best possible energy efficiency while being operable within the harshest ambient conditions
- Stepless capacity control from 25% to 100% adapting precisely to varying process loads
Air-cooled Scroll Chillers
Reynold Air-cooled Scroll Chillers are highly energy efficient and are perfectly designed to work within extreme tropical weather conditions. Supported with European origin compressors, these chillers are designed, manufactured and tested in conformation with international industrial standards. The chillers are operation friendly, easy to install and backed by competent engineering team to realize the advantages while being in operation.
Prominent Features- Reliable and energy efficient scroll compressors of European origin
- Environment friendly refrigerant R-407C / R-410A/ R- 134a,available
- Separate and individual refrigeration circuits with each compressor
- Totally skid mounted unit with single and multiple refrigeration circuits including fluid pump and storage tank
- Electronic expansion valves for larger capacities, for energy efficiency and precise temperature control
- Factory made and tested tube-in-tube as well as shell and tube evaporators, with high-flow high-pressure design, for specific process applications
- Low FPI count and high condensing area together with low noise, high flow, pressure-controlled axial fans, ensuring best possible energy efficiency while being operable within the harshest ambient conditions
- Fully automatic PLC based units with remote operation and data logging facilities,available
- Automatic, stepped capacity control, through multiple compressor operation,from 33% to 100%

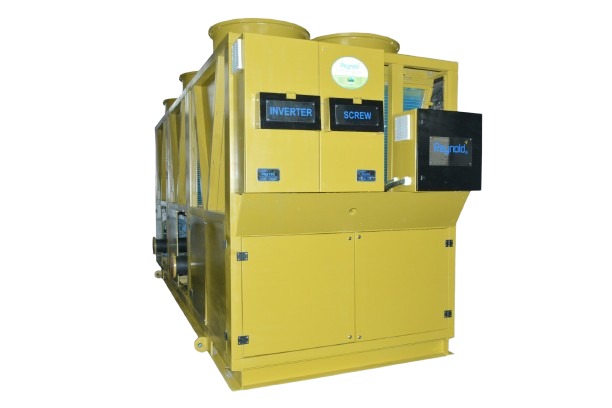

Air Cooled Inverter Screw Chillers
This is a new series of compressor called CSVH series with inbuilt inverter, permanent magnet motor in bigger motors , integrated 3 step oil separator, automatic 2 step VI slider, integrated check valve, oil filter, inbuilt MODBUS Communication and excellent part load efficiency which improved efficiency from 5% to 72% compared to a standard screw compressor.
Prominent Features- An external VFD based screw chiller can only change the speed of the Screw Compressor from 40Hz to 60Hz, that means from 2200 RPM to 3500 RPM, while this Inverter based Variable Speed Chiller can change the speed from 1750 RPM to 8000 RPM.There fore better control over sped and hence more saving in power at part load and lower load.
- Why a Standard Screw Chiller with externalVFD can not be used at lower Speed? like a Inverter based Variable Speed Chiller – This is because of Oil. Since there is no oil pump, at lower speed, an External VFD based chiller cannot bring back the oil at lower levels, while the Inverter based Variable Speed Chiller has an Intelligent software and monitoring system, which monitors the oil level and speeds up the compressor as and when required automatically to keep the system healthy and running.
- Some Motors in Inverter basedVariable Speed Chiller are Permanent Magnet motors in place of Standard Asynchronous motor, which has excellent part load efficiency.
Water-cooled Scroll Chillers
Reynold environmental friendly Water-cooled Scroll Chillers are easy to install and can work perfectly in extreme tropical weather conditions. These scroll chillers are designed, manufactured and tested as per approved international parameters. Installed equipments are operation friendly and are backed by competent engineering team to realize the advantage while being in operation.
Prominent Features- Reliable and energy efficient scroll compressors of European origin
- Environment friendly refrigerant R-407C / R-410A/ R- 134a,available
- Separate and individual refrigeration circuits with each compressor
- Totally skid mounted unit with single and multiple refrigeration circuits including fluid pump and storage tank
- Electronic expansion valves for larger capacities, for energy efficiency and precise temperature control
- Factory made and tested tube-in-tube as well as shell and tube evaporators, with high-flow high-pressure design, for specific process applications
- High fouling factors increased condensing area, extra tube thickness and high-flow design, for highest energy efficiency, higher operational reliability and easier maintenance
- Fully automatic PLC based units with remote operation and data logging facilities,available
- Automatic, stepped capacity control, through multiple compressor operation,from 33% to 100%
Water Cooled Inverter Screw Chillers
This is a new series of compressor called CSVH series with inbuilt inverter, permanent magnet motor in bigger motors , integrated 3 step oil separator, automatic 2 step VI slider, integrated check valve, oil filter, inbuilt MODBUS Communication and excellent part load efficiency which improved efficiency from 5% to 72% compared to a standard screw compressor.
Prominent Features- An ExternalVFD based screw chiller can only change the speed of the Screw Compressor from 40Hz to 60Hz, that means from 2200 RPM to 3500 RPM, while this Inverter basedVariable Speed Chiller can change the speed from 1750 RPM to 8000 RPM.There fore better control over sped and hence more saving in power at part load and lower load.
- Why a Standard Screw Chiller with externalVFD can not be used at lower Speed? like a Inverter based Variable Speed Chiller – This is because of Oil. Since there is no oil pump, at lower speed, an External VFD based chiller cannot bring back the oil at lower levels, while the Inverter based Variable Speed Chiller has an Intelligent software and monitoring system, which monitors the oil level and speeds up the compressor as and when required automatically to keep the system healthy and running.
- Some Motors in Inverter based Variable Speed Chiller are Permanent Magnet motors in place of Standard Asynchronous motor, which has excellent part load efficiency.

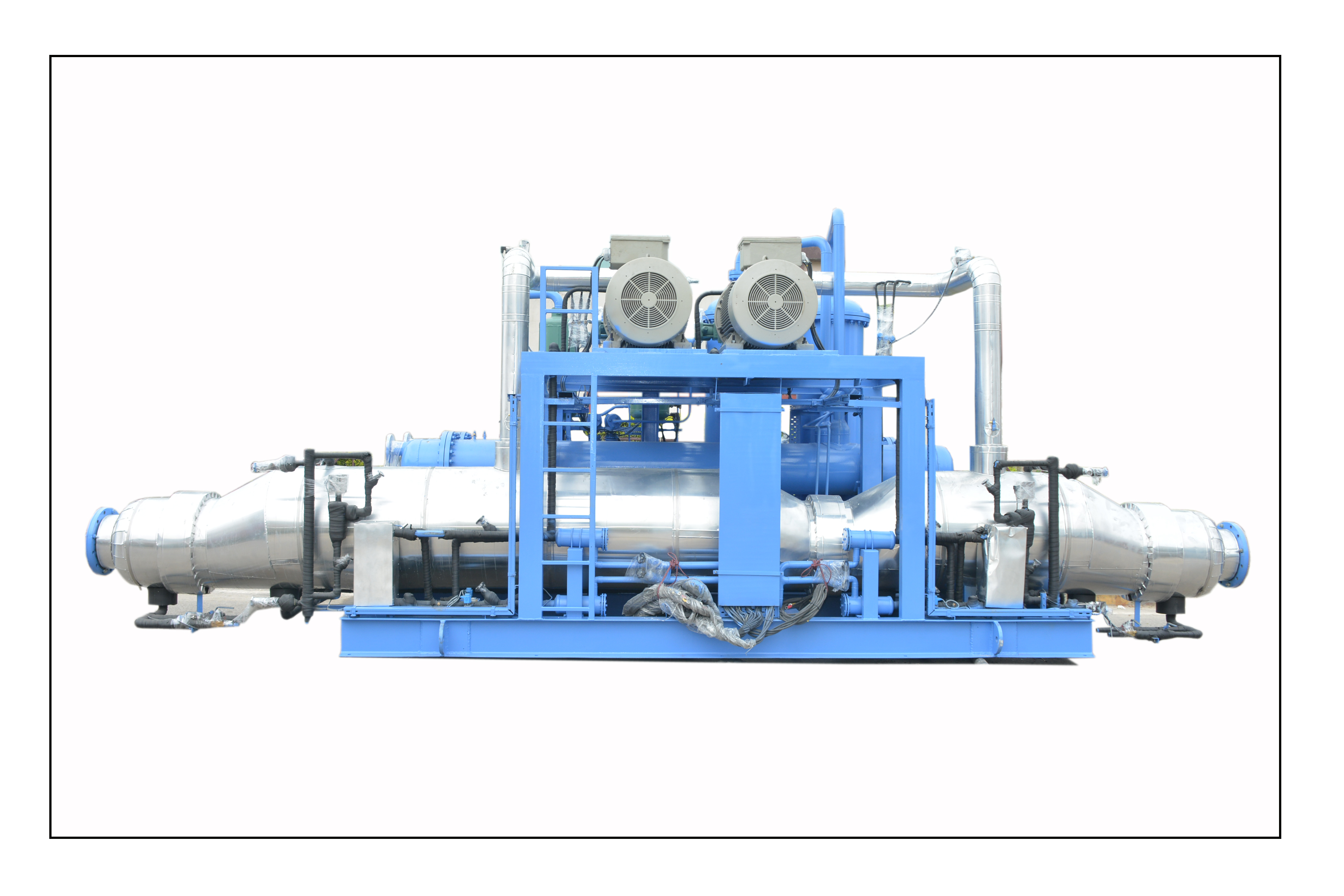

Air Chillers
Reynold Air Chillers are VFD based, designed for precise temperature and flow of chilled air, for specific applications like plastic blown film plants etc. The Industrial chillers are highly energy efficient by upto 50%, in comparison to the traditional air cooling systems using water chillers in tandem with the air exchangers. Since the ambient temperature and RH varies continuously, the chiller is designed to operate within the desirable temperature range, with automatic capacity control from 40% to 110%.
Prominent Features- Reliable and energy efficient hermetic and semi- hermetic compressors of European origin
- Environment friendly refrigerant R-407C/ R-410A/ R- 134a,available
- Designed for precise air outlet temperature range, upto 48oC ambient temperature and 90% RH
- Energy saving of upto 50%, in comparison to the traditional indirect air cooling systems
- VFD based design for better temperature control and higher efficiency, available
- Compact design with less footprint area and lower maintenance cost
- Separate and individual refrigeration circuits with each compressor
- Electronic expansion valves for larger capacities, for energy efficiency and precise temperature control
- Fully automatic PLC based units with remote operation and data logging facilities,available
